Lissajous/Bowditch Figures

The figure below is a Lissajous Figure.
Why are these figures important--the interested reader is encouraged to do some research.
There are eight controls given...The X and Y frequencies, X and Y tiny extra frequencies, the X and Y amplitudes, and the X and Y extra phases.
The X and Y extra phases can be reduced to a single phase control because it is the phase difference that matters.

Vertical Controls
Horizontal Controls
Animation Controls
The X and Y frequencies will produce a figure which depends on their lowest common integer multiple. For example, the following pairs of frequencies produce the same figures....2:3, 4:6, 6:9, and so on. To be "complete" there must be a whole number of cycles in the X direction in the same time as a whole number of cycles in the Y direction. When the lowest common integer multiple is large, the figure is very complex. For example, a pair of frequencies 2.2:3 has a lowest integer common multiple of 11:15. You can test this using the interactive display. Originally (before they became known as Lissajous Figures) these might have been drawn by suspended bags of sand leaking their contents as they swung back and forth.

A French chap Jules Lissajous, in the mid 1800's, used pairs of tuning forks with mirrors stuck on their prongs to draw thee figures on a screen. Before him, an American, Nathaniel Bowditch (1773-1838) studied these same curves.

The Australian Broadcasting Corporation (ABC) is Australia's public broadcaster and has a nice web page describing why its logo is a 3:1 Lissajous Figure.

A university in America, MIT Lincoln Labs, has as its emblem a Lissajous figure which is a ratio of 4 to 3 with a phase added.

A Backscatter Ionogram

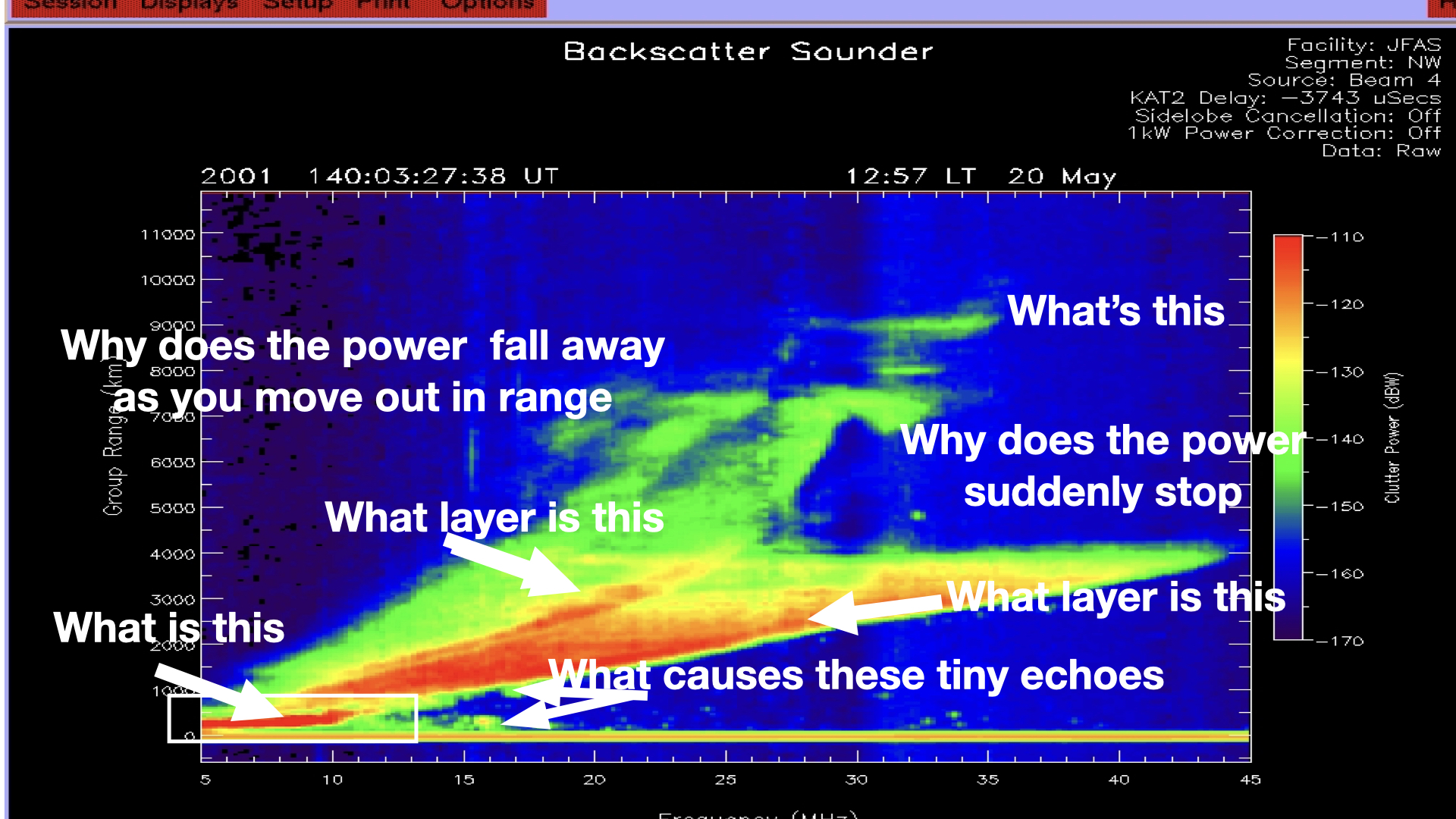

This is an example of a backscatter ionogram, one of the fundamental real-time measurements of ionospheric propagation crucial to the operation of High Frequency Over The Horizon Radars.
What is measured and how does it show in this display?
What might this image look like if there had just been a solar flare?
